Maggiore accessibilità, caratteristiche ROG
- Socket LGA1150 per CPU di Quarta generazione Intel®Core™ i7/ i5/ i3/ Pentium® / Celeron®
- Chipset Intel® Z87 Express
- SupremeFX - audio senza rivali
- Sonic Radar - Scan and detect to dominate
- Extreme Engine Digi+ III - Massima potenza con componenti di prima qualità
- GameFirst II + Intel LAN - Colpite per primi!
ROG joining privileges now more accessible! Introducing Maximus VI Hero, the newest series from the ROG family, which packs outstanding quality, overclocking capabilities, and gamer-friendly features such as in-game visualized Sonic Radar detection and GameFirst II network optimization. It’s also loaded with amazing reliability, exclusive SupremeFX crystal-clear audio, and famous ROG dynamic tweaking powers, as well as the brand’s attractive red and black design. But there’s more: look below to check it out!
Re-arm with better sound and faster networking
SupremeFX
Supremacy through discrete-caliber audio

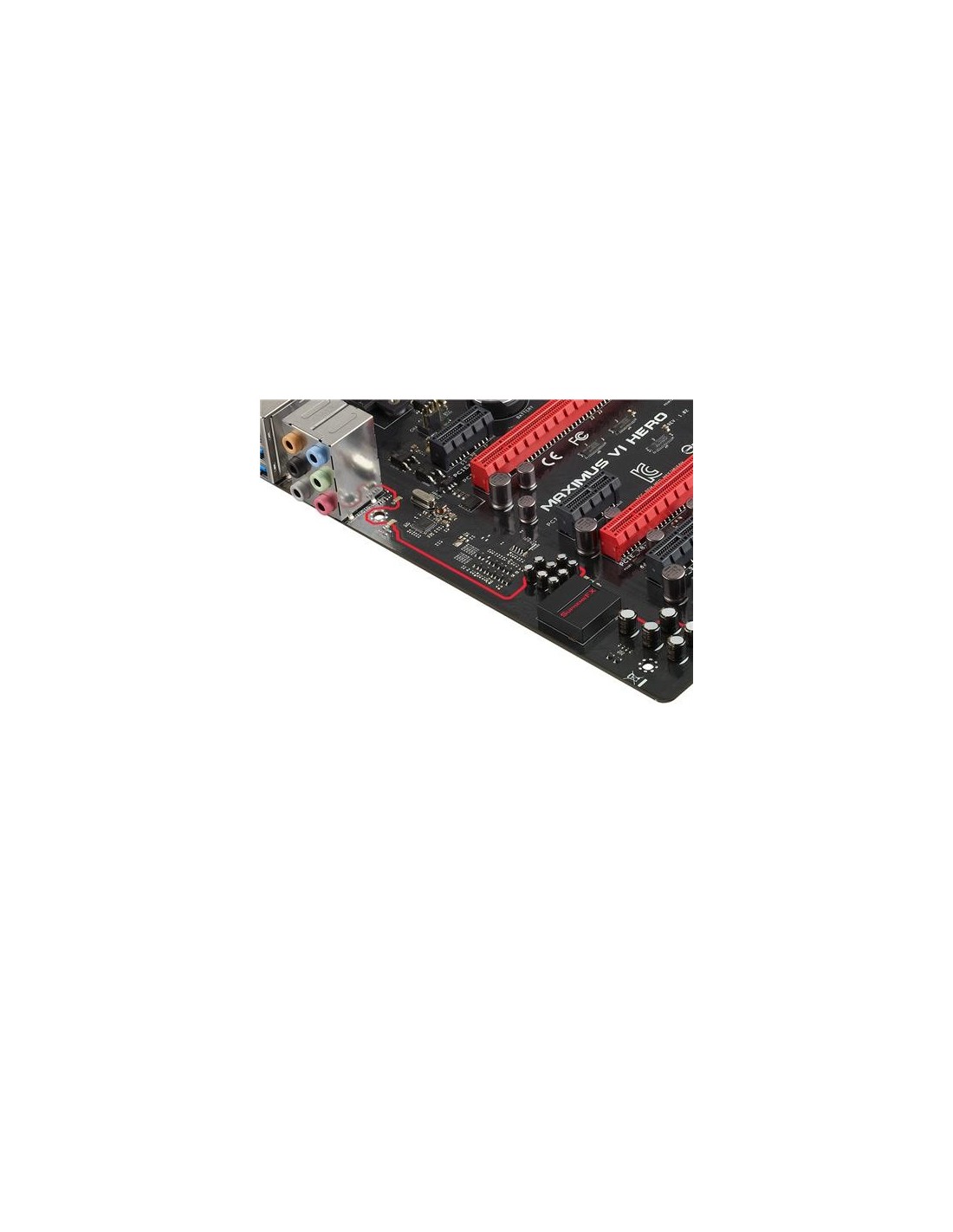

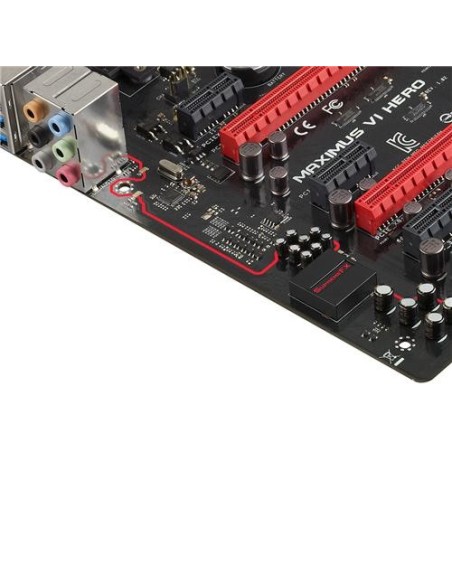

ROG-exclusive technology implements multi-approach shielding, with ELNA audio capacitors helping offer 8-channel HD sound that's equal in power, clarity, and range to dedicated sound cards. This is the first-ever onboard sound capable of true audiophile-grade performance, set to revolutionize the way you hear games, movies, music, and even other people via chat. Discover a whole new dimension of superior audio and get ready to rule.
SupremeFX shielding: ensures precision analog/digital separation and greatly reduced multi-lateral interference from within the PCB and from other components.
EMI protection cover: protects HD audio chip from interference to ensure sound quality.
ELNA premium Japan-made audio capacitors: provide warm, natural, and immersive sound with exceptional clarity and fidelity that are great for game effects and multimedia.
Extreme Engine Digi+ III
Hardcore power delivery with premium components
Completely digital architecture supplies the highest stability and precision for the CPU and memory, featuring dynamic speed adjustments. Power components are also upgraded. NexFET MOSFETs handle up to 90% efficiency under normal operation and better durability in half the size of standard MOSFETs. Exclusive BlackWing chokes remain cool even when sizzling with as much as 60 amps of power with 3-5°C lower temps and minimal-loss power delivery. Japan-made 10K Black Metallic capacitors last five times longer and deliver 20% greater extreme temperature endurance than generic solid state capacitors, easily standing up to hardcore demands.
Best UEFI BIOS design gives you full control of your PC
Upgraded UEFI BIOS
Most award-winning in segment
The new ROG UEFI BIOS includes a Last Modified feature that records recent changes. And to make sure you never forget a tuning idea, the in-BIOS Quick Note is perfect for jotting down memos and system details. It sure beats easily-misplaced paper notes! There’s also F4 My Favorites and Shortcuts for easy access to the BIOS features you need most, and you can even adjust boot logo size. The new BIOS also lets you name individual SATA ports so you can easily identify them to save time when defining boot sequences and other drive-related settings.
With ROG Pulse, a cool flashing ROG logo indicates system activity, and very importantly, the helpful SSD Secure Erase has been added, restoring SSD speed from inside the BIOS and with no need for less compatible third party utilities. Click the upper right tab to learn more.
Unleash your graphic power
SLI/CrossFire On-Demand
Why choose when you can have both?
SLI or CrossFireX? Fret no longer because with the ROG Maximus VI HERO, you’ll be able to run both multi-GPU setups. The board features SLI/CrossFire on Demand technology, supporting up to Quad-GPU SLI or Quad-GPU CrossFireX configuration. Whichever path you take, you can be assured of jaw-dropping graphics at a level previously unseen.
Exclusive utilities push your system beyond limitations
SSD Secure Erase
Recover lost performance. Back to high speed
SSD performance degrades with time due to overwrite action. ROG is the world’s first motherboard brand to integrate SSD Secure Erase into UEFI BIOS for better compatibility and easier use, offering the best removal method to completely delete all data on an SSD to recover lost performance and restore factory speeds.
2nd T-Topology
5%+ full load OC margin and 10%+ with one DIMM
For extreme memory overclocking under full load, ASUS developed the world’s first 2nd generation T-Topology. It further optimizes layout to minimize coupling noise and signal reflection, increasing DRAM overclocking. Testing shows around 5% more OC margin under full load, and 10% OC margin growth for one-DIMM configurations.
Dual Intelligent Processors 4
Dual Intelligent Processors 4 with 4-Way Optimization
One click for better performance, efficiency, digital power control, reduced noise, and improved cooling.
Intel® LGA1150 4th Generation Core™ i7/Core™ i5/Core™ i3/Pentium®/Celeron® Processors Ready
This motherboard supports Intel® 4th generation Core™ i7/i5/i3/Pentium®/Celeron® processors in the LGA1150 package, with iGPU, memory and PCI Express controllers integrated to support onboard graphics output with dedicated chipsets, 2-channel (4 DIMM) DDR3 memory and 16 PCI Express 3.0/2.0 lanes. This provides great graphics performance. Intel® 4th generation Core™ i7/i5/i3/Pentium®/Celeron® processors are among the most powerful and energy efficient CPUs in the world.
Intel® Z87 Express Chipset
The Intel® Z87 Express chipset is a single-chipset design that supports socket LGA1150 4th generation Intel® Core™ i7/i5/i3/Pentium®/Celeron® processors. It provides improved performance by utilizing serial point-to-point links, allowing increased bandwidth and stability. It natively supports up to six USB 3.0 ports for up to ten times faster transfer rates than USB 2.0. Moreover, the Intel® Z87 Express chipset also supports iGPU functionality, letting users enjoy the latest Intel integrated graphics performance.
RoHS
GreenASUS
Motherboards are EU Energy-related Products (ErP) ready, which requires products meet high efficiency standards with regards to energy consumption. This is in line with the ASUS vision of creating environmentally-friendly and energy-efficient products through design and innovation that reduce the carbon footprint of products and thus mitigate ecological impact.
ASUS MAXIMUS VI HERO. Produttore processore: Intel, Presa per processore: LGA 1150 (Presa H3), Processori compatibili: Intel® Celeron®, Intel® Pentium®. Tipi di memoria supportati: DDR3-SDRAM, RAM massima supportata: 32 GB, tipo di slot di memoria: DIMM. Interfacce dell'unità di archiviazione supportate: SATA,SATA II,SATA III. Tecnologia di processo parallela: 2-Way CrossFireX,2-Way SLI,Quad-GPU CrossFireX,Quad-GPU SLI, Famiglia della scheda grafica: Intel, Adattatore grafico: HD Graphics. Versione HDMI: 1.4a
| Processore |
| Produttore processore | Intel |
| Presa per processore | LGA 1150 (Presa H3) |
| Processori compatibili | Intel® Celeron®, Intel® Pentium® |
| Numero massimo processori SMP | 1 |
| prese elettriche per processori supportate | LGA 1150 (Presa H3) |
| Memoria |
| Tipi di memoria supportati | DDR3-SDRAM |
| Numero di slot di memoria | 4 |
| tipo di slot di memoria | DIMM |
| Canali di memoria | Dual-channel |
| Data Integrity Check (verifica integrità dati) | No |
| Non-ECC | Sì |
| Velocità di memoria supportate | 1333,1500,1600,1666,1800,1866,1900,2000,2100,2133,2200,2250,2400,2450,2600,2666,2800 MHz |
| RAM massima supportata | 32 GB |
| Senza buffer | Sì |
| Controller di archiviazione |
| Interfacce dell'unità di archiviazione supportate | SATA,SATA II,SATA III |
| Livelli RAID | 0,1,5,10 |
| Grafica |
| Tecnologia di processo parallela | 2-Way CrossFireX,2-Way SLI,Quad-GPU CrossFireX,Quad-GPU SLI |
| Scheda grafica integrata | Sì |
| Famiglia della scheda grafica | Intel |
| Adattatore grafico | HD Graphics |
| Risoluzione massima | 4096 x 2160 Pixel |
| HDCP | Sì |
| Supporto della grafica discreta | Sì |
| I/O interni |
| Connettori USB 2.0 | 2 |
| Connettori USB 3.2 Gen 1 (3.1 Gen 1) | 1 |
| Numero di connettori SATA III | 8 |
| Connettore uscita S/PDIF | Sì |
| Connettore pannello audio frontale | Sì |
| Connettore ATX (24-PIN) | Sì |
| Connettore ventola CPU | Sì |
| Numero di connettori ventola chassis | 4 |
| Connettore d'intrusione del telaio | Sì |
| Connettore di potenza EPS (8-Pin) | Sì |
| Connettore TPM | Sì |

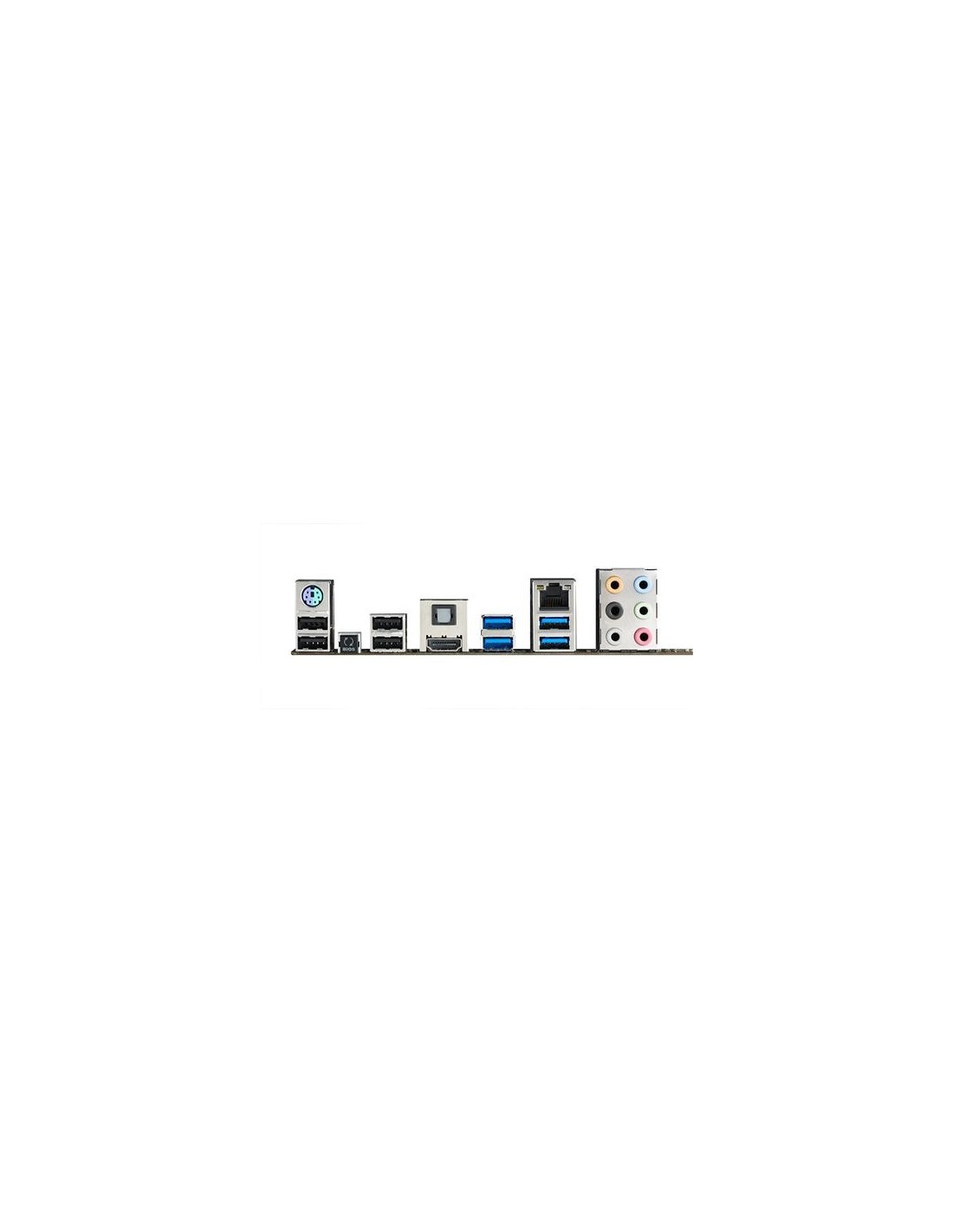

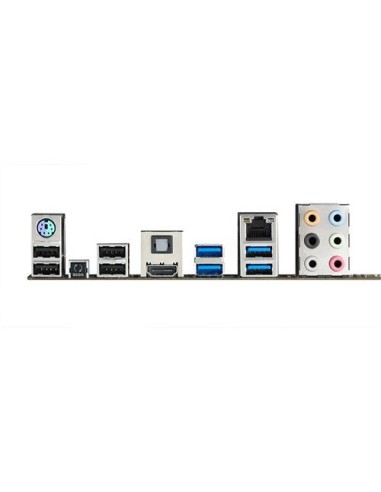

| Pannello posteriore porte I/O |
| Quantità porte USB 2.0 | 4 |
| Quantità di porte USB 3.2 Gen 1 (3.1 Gen 1) di tipo A | 4 |
| Quantità porte Ethernet LAN (RJ-45) | 1 |
| Quantità porte PS/2 | 1 |
| Quantità porte HDMI | 1 |
| Versione HDMI | 1.4a |
| Uscite per cuffie | 6 |
| Microfono, spinotto d'ingresso | Sì |
| Porta uscita S/PDIF | Sì |
| Collegamento in rete |
| Collegamento ethernet LAN | Sì |
| Tipo di interfaccia Ethernet | Gigabit Ethernet |
| Wi-Fi | No |
| Bluetooth | No |
| Caratteristiche |
| Componente per | PC |
| Fattore di forma scheda madre | ATX |
| Famiglia di chipset per scheda madre | Intel |
| Chipset scheda madre | Intel® Z87 |
| Sistema audio | 7.1 canali |
| Monitoraggio dello stato di salute del PC | CPU, Ventilatore, Temperatura |
| Tipologia alimentazione | ATX |
| Sistema operativo Windows supportato | Sì |
| Slot espansione |
| x1 slot PCI Express | 3 |
| PCI Express x16 slots | 3 |
| configurazione PCI Express | 1x16,2x8 |
| BIOS |
| Tipo BIOS | EFI AMI |
| Dimensione memoria BIOS | 64 Mbit |
| Versione ACPI | 2.0a |
| Jumper di azzeramento CMOS | Sì |
| Caratteristiche speciali del processore |
| Processore con tecnologia grafica Intel richiesta | Sì |
| Dimensioni e peso |
| Larghezza | 305 mm |
| Profondità | 244 mm |
| Contenuto dell'imballo |
| Cavi inclusi | SATA |
| Drivers inclusi | Sì |
| Altre caratteristiche |
| Dual Link DVI | Sì |
| Interruttore BIOS | Sì |
