ASUS 5X Protection
All-round protection provides the best quality, reliability, and durability
ASUS motherboards guard your PC with 5X Protection. We use quality components like DIGI+ VRM digital power design for precise CPU power on demand, ESD units tested to strict standards that eliminate electrostatic interference, and resettable fuses around DRAM slots to prevent overcurrent and short-circuit damage. We also use corrosion-resistant back I/O shields, all examples of ASUS providing the best possible reliability and durability.
New UEFI BIOS – friendlier and more intuitive
Exclusive EZ Mode adds useful info to become even easier
Media-renowned UEFI BIOS from ASUS provides the smoothest mouse-controlled graphical BIOS, and now features more intuitive functions to quickly take you to favorite BIOS pages and frequently-accessed settings through custom shortcuts. You can even write quick notes in-BIOS for future reference, view an activity log of setting changes and modifications, and rename SATA ports. EZ Mode has a whole new look, upgraded with extra-friendly capabilities like detailed fan controls, XMP profile settings, SATA information, and fast clock adjustment. Together, these perfect your BIOS experience.
USB 3.0 Boost (UASP Support)
170% faster transfer speeds than traditional USB 3.0
ASUS USB 3.0 Boost technology supports UASP (USB Attached SCSI Protocol) in Windows 8. With USB 3.0 Boost technology, a USB device's transmission speed is significantly increased up to 170%, adding to already fast USB 3.0 performance. ASUS software automatically accelerates data rates for compatible USB 3.0 peripherals without any user interaction.
World’s 1st USB 3.0 UASP support – instantly 170% faster.
- Complete USB 3.0 solution – performance boost under Turbo Mode or UASP Mode for most USB devices.
- Simple plug and boost – auto detection design ensures best performance.
EZ DIY
Q-Slot
Effortless PCI Express component removal
Press the Q-Slot clip lightly, and graphics cards just pop out. The large winged clip is easy to reach so you don’t have to struggle with installing or removing even the biggest graphics cards.
ASUS Boot Setting
Multiple startup options
Thanks to ASUS Windows 8 hardware optimization, ASUS Boot Setting provides better flexibility in customizing your PC’s startup process. You can shorten system boot-up time to 2-seconds* for a smoother user experience under Windows 8, and even previous versions of Windows. Also, you can enter the BIOS directly with one click through a user-friendly interface, and quickly select your preferred system boot up method: either get to the OS in seconds or opt for regular boot up. Whatever your choice, settings are saved and persistent, with no need to choose every time you power on.
Intel® LGA1150 4th Generation Core™ i7/Core™ i5/Core™ i3/Pentium®/Celeron® Processors Ready
This motherboard supports Intel® 4th generation Core™ i7/i5/i3/Pentium®/Celeron® processors in the LGA1150 package, with iGPU, memory and PCI Express controllers integrated to support onboard graphics output with dedicated chipsets, 2-channel (2 DIMM) DDR3 memory and 16 PCI Express lanes. This provides great graphics performance. Intel® 4th generation Core™ i7/i5/i3/Pentium®/Celeron® processors are among the most powerful and energy efficient CPUs in the world.
Intel® H81 Express Chipset
The Intel® H81 Express chipset is a single-chipset design that supports socket LGA1150 4th generation Intel® Core™ i7/i5/i3/Pentium®/Celeron® processors. It provides improved performance by utilizing serial point-to-point links, allowing increased bandwidth and stability. It natively supports up to two USB 3.0 ports for up to ten times faster transfer rates than USB 2.0. Moreover, the Intel® H81 Express chipset also supports iGPU functionality, letting users enjoy the latest Intel integrated graphics performance.
GreenASUS
Motherboards are EU Energy-related Products (ErP) ready, which requires products meet high efficiency standards with regards to energy consumption. This is in line with the ASUS vision of creating environmentally-friendly and energy-efficient products through design and innovation that reduce the carbon footprint of products and thus mitigate ecological impact.

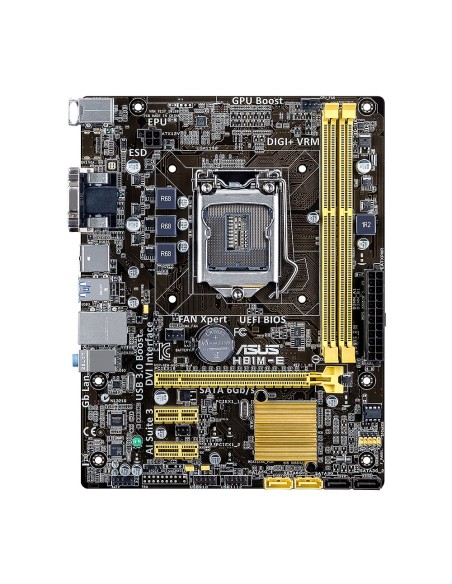

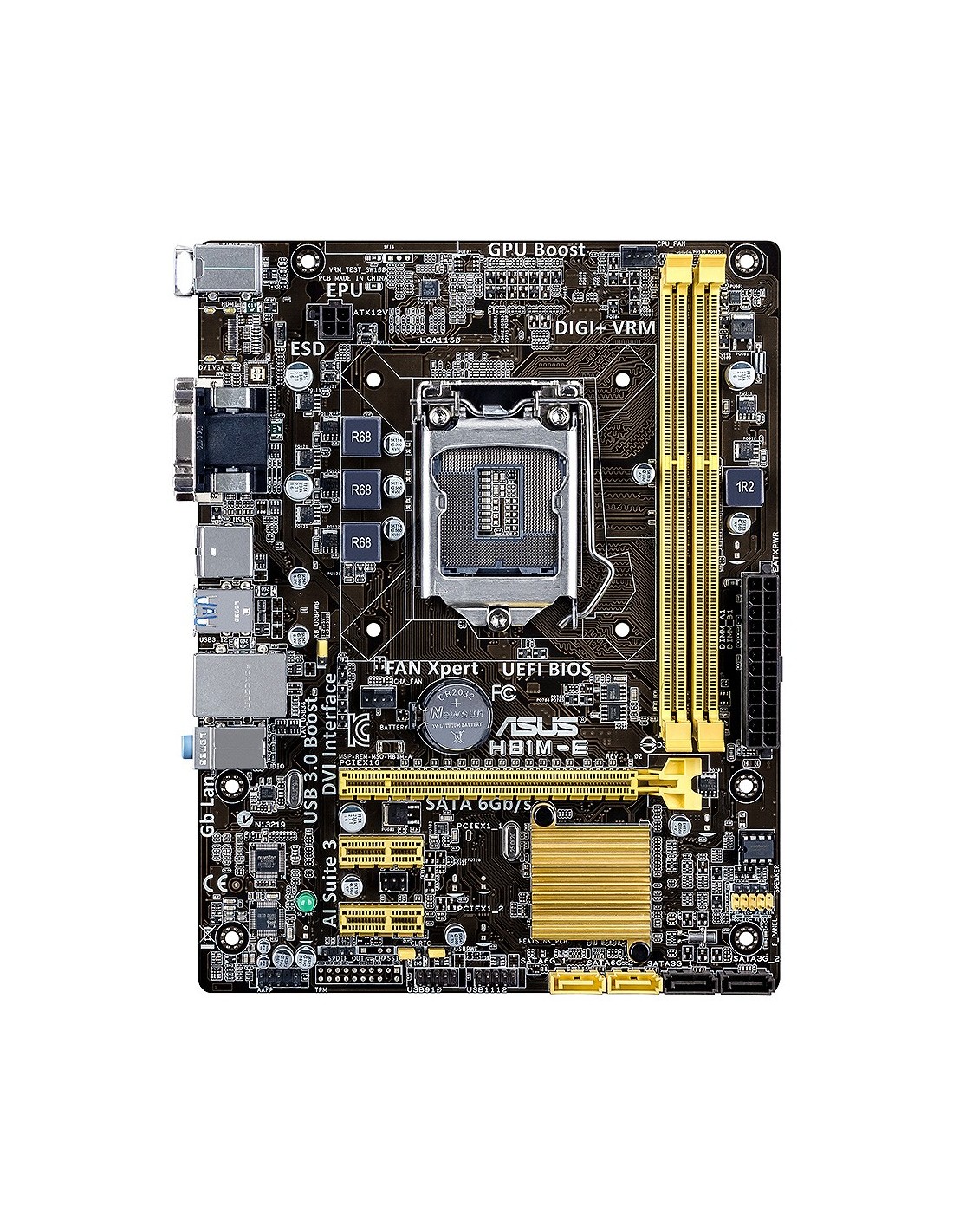

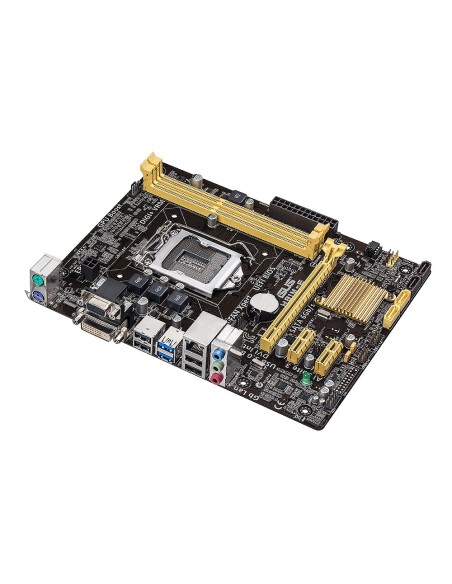

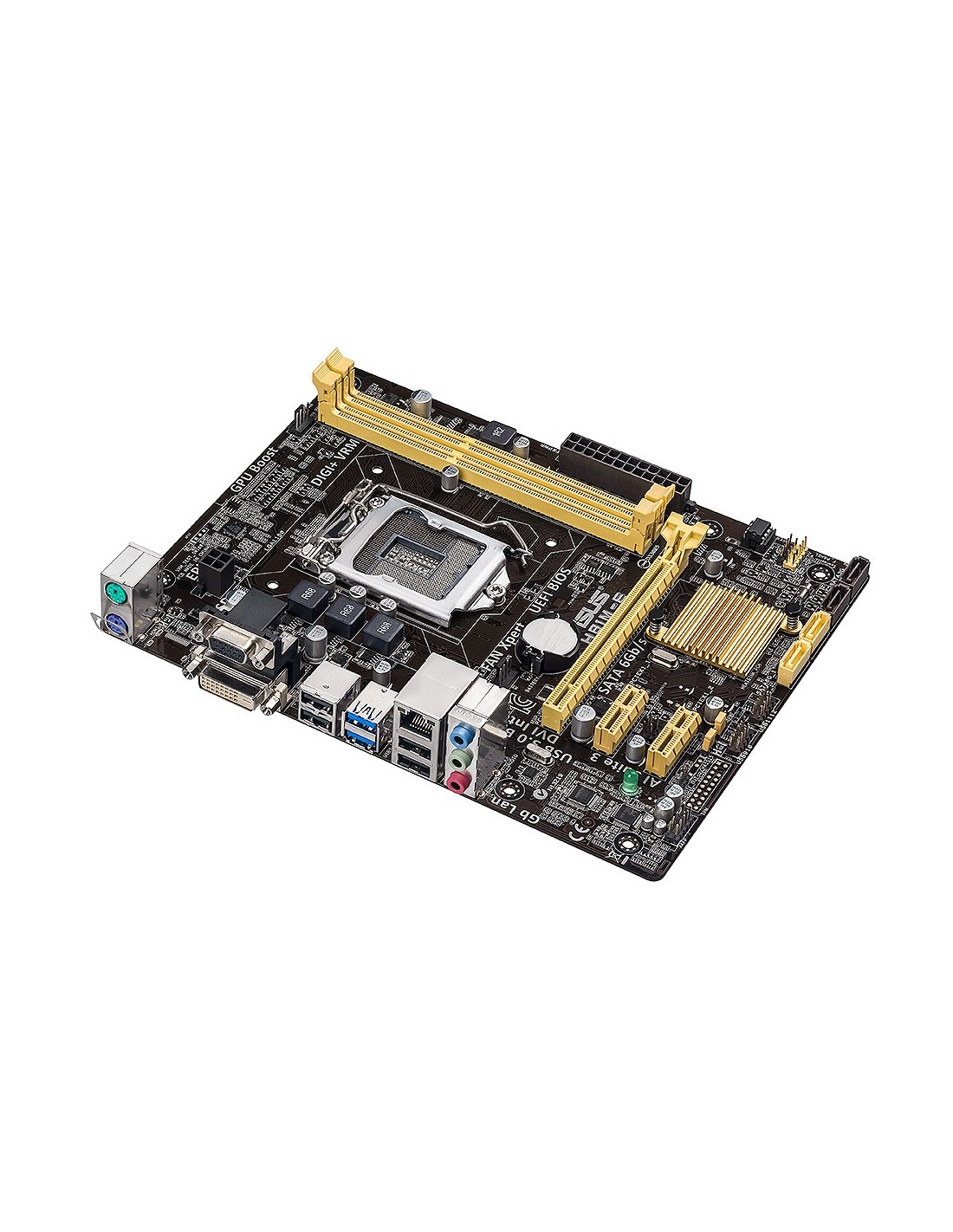

ASUS H81M-E. Produttore processore: Intel, Presa per processore: LGA 1150 (Presa H3), Processori compatibili: Intel® Celeron®, Intel® Pentium®. Tipi di memoria supportati: DDR3-SDRAM, RAM massima supportata: 16 GB, tipo di slot di memoria: DIMM. Interfacce dell'unità di archiviazione supportate: SATA II,SATA III. Memoria massima adattatore grafico: 1024 MB, Famiglia della scheda grafica: Intel, Risoluzione massima: 1920 x 1200 Pixel. Tipo di interfaccia Ethernet: Gigabit Ethernet
| Processore |
| Produttore processore | Intel |
| Presa per processore | LGA 1150 (Presa H3) |
| Processori compatibili | Intel® Celeron®, Intel® Pentium® |
| Memoria |
| Tipi di memoria supportati | DDR3-SDRAM |
| tipo di slot di memoria | DIMM |
| Canali di memoria | Dual-channel |
| Non-ECC | Sì |
| Velocità di memoria supportate | 1066,1333,1600 MHz |
| capacità supportata del modulo di memoria | 1GB, 2GB, 4GB, 8GB |
| RAM massima supportata | 16 GB |
| Controller di archiviazione |
| Interfacce dell'unità di archiviazione supportate | SATA II,SATA III |
| Grafica |
| Memoria massima adattatore grafico | 1024 MB |
| Tecnologia di processo parallela | Non supportato |
| Famiglia della scheda grafica | Intel |
| Risoluzione massima | 1920 x 1200 Pixel |
| I/O interni |
| Connettori USB 2.0 | 4 |
| Numero di connettori SATA III | 2 |
| Numero di connettori SATA II | 2 |
| Numero di connettori SATA | 4 |
| Connettore pannello audio frontale | Sì |
| Connettore ATX (24-PIN) | Sì |
| Alimentazione ventola | Sì |
| Connettore ventola CPU | Sì |
| Numero di connettori ventola chassis | 1 |
| Connettore d'intrusione del telaio | Sì |
| Connettori periferiche (Molex) (4-pin) | 1 |

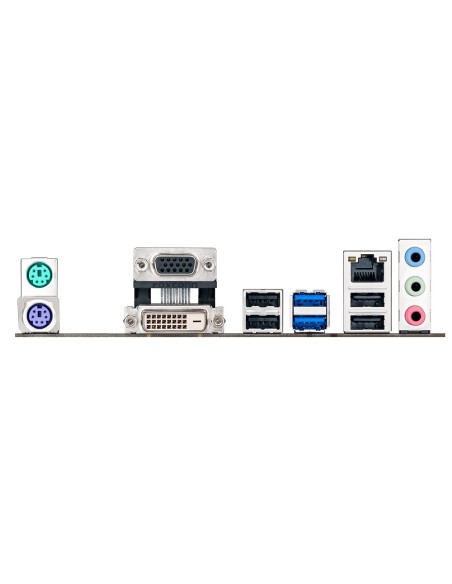

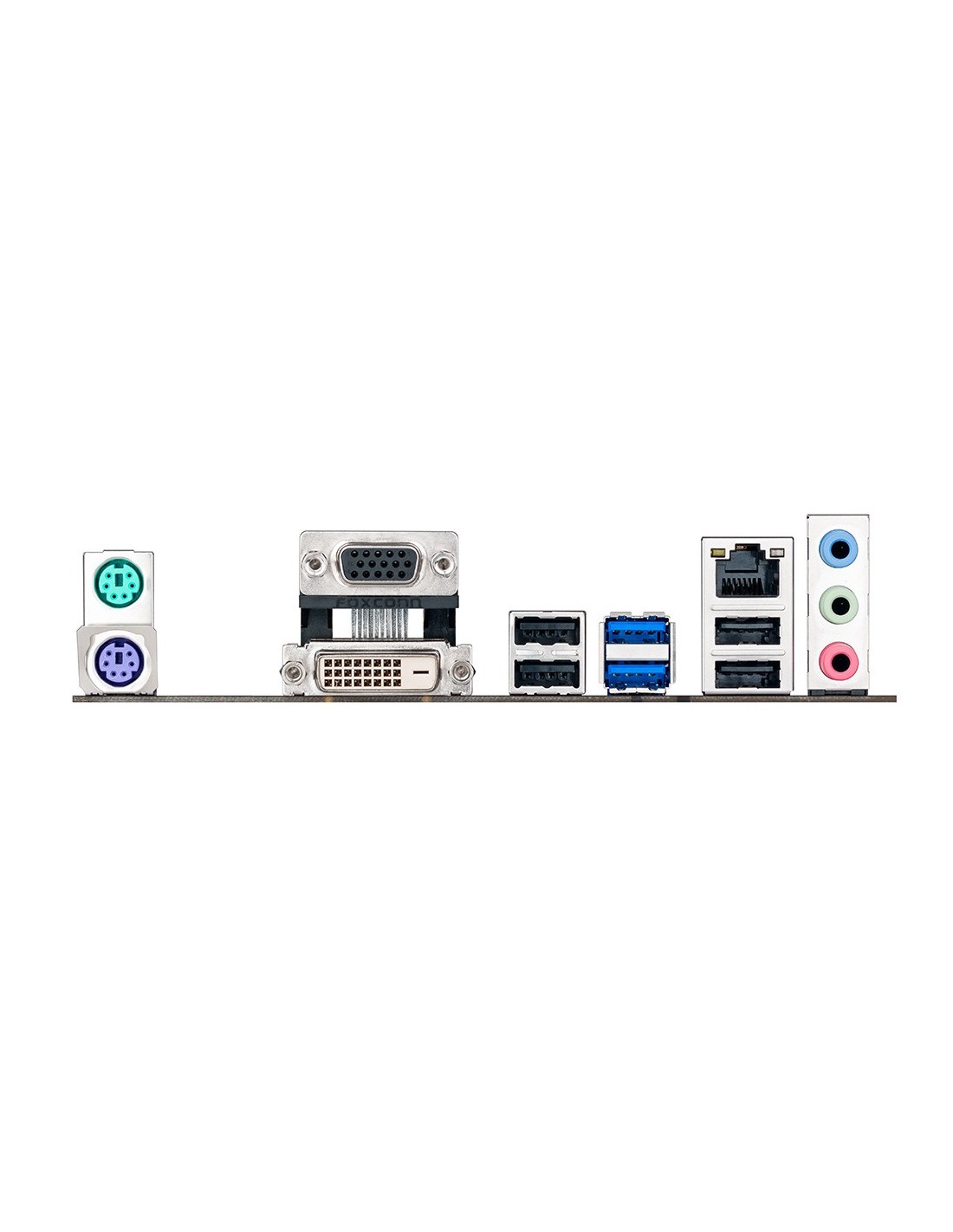

| Pannello posteriore porte I/O |
| Quantità porte USB 2.0 | 4 |
| Quantità di porte USB 3.2 Gen 1 (3.1 Gen 1) di tipo A | 2 |
| Quantità porte Ethernet LAN (RJ-45) | 1 |
| Quantità porte PS/2 | 2 |
| Quantità porte VGA (D-Sub) | 1 |
| Quantità porte DVI-D | 1 |
| Uscite per cuffie | 1 |
| Microfono, spinotto d'ingresso | Sì |
| Porta uscita S/PDIF | Sì |
| Collegamento in rete |
| Collegamento ethernet LAN | Sì |
| Tipo di interfaccia Ethernet | Gigabit Ethernet |
| Caratteristiche |
| Componente per | PC |
| Famiglia di chipset per scheda madre | Intel |
| Chipset scheda madre | Intel® H81 |
| Chip audio | Realtek ALC887 |
| Tipologia alimentazione | ATX |
| Sistema operativo Windows supportato | Windows 7 Home Basic,Windows 7 Home Basic x64,Windows 7 Home Premium,Windows 7 Home Premium x64,Windows 7 Professional,Windows 7 Professional x64,Windows 7 Starter,Windows 7 Starter x64,Windows 7 Ultimate,Windows 7 Ultimate x64,Windows 8,Windows 8 Enterprise,Windows 8 Enterprise x64,Windows 8 Pro,Windows 8 Pro x64,Windows 8 x64 |
| Slot espansione |
| Slot PCI Express x1 (Gen 2.x) | 2 |
| PCI Express x16 slots | 1 |
| BIOS |
| Tipo BIOS | UEFI AMI |
| Versione ACPI | 2.0a |
| Jumper di azzeramento CMOS | Sì |
| Dimensioni e peso |
| Larghezza | 226 mm |
| Profondità | 175 mm |
| Contenuto dell'imballo |
| Cavi inclusi | SATA |
| Drivers inclusi | Sì |
| Altre caratteristiche |
| Connettore di ingresso S/PDIF | Sì |
| Guida d'installazione rapida | Sì |
