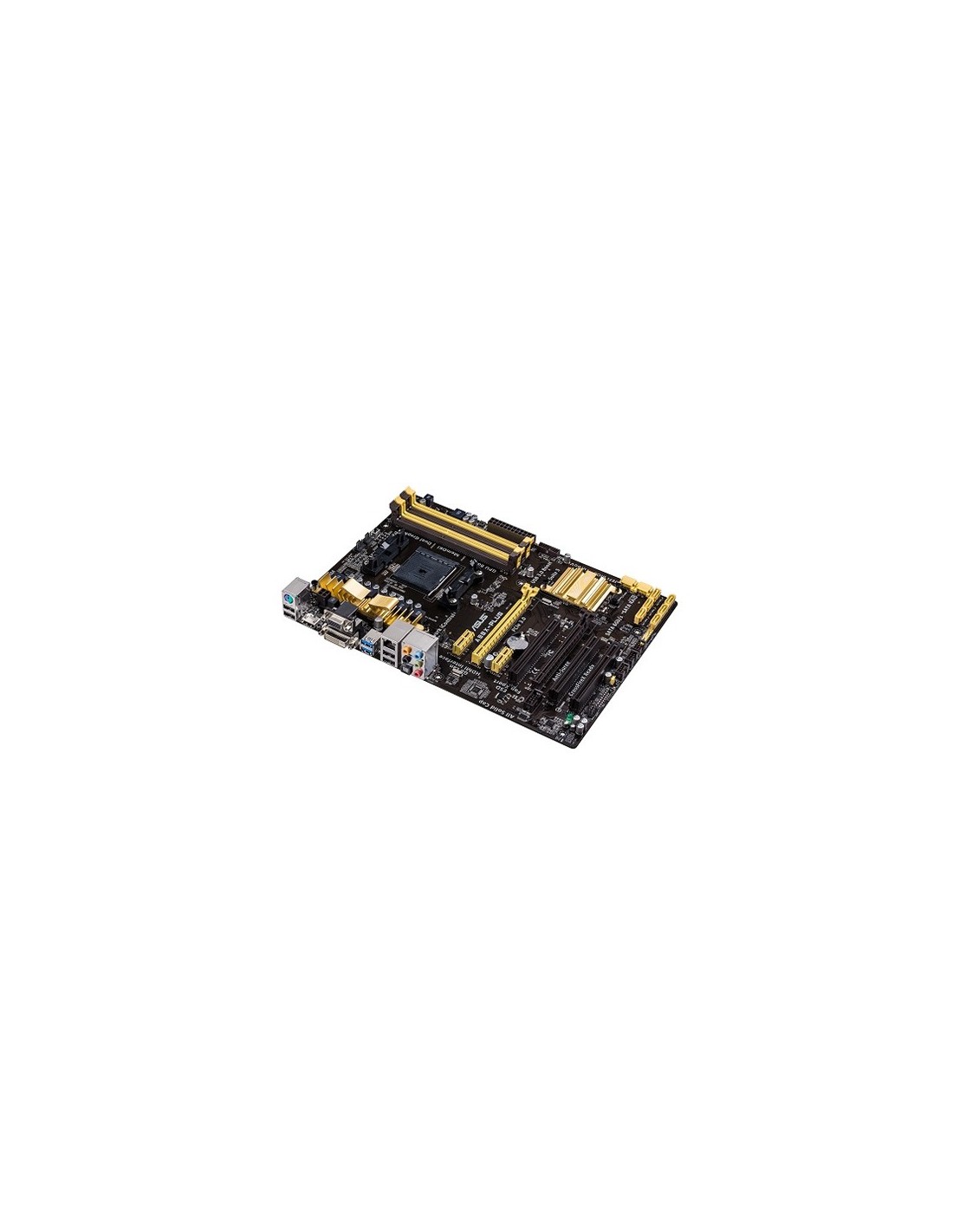

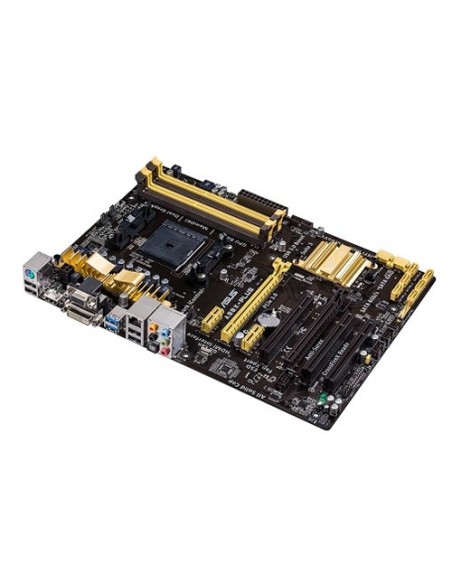

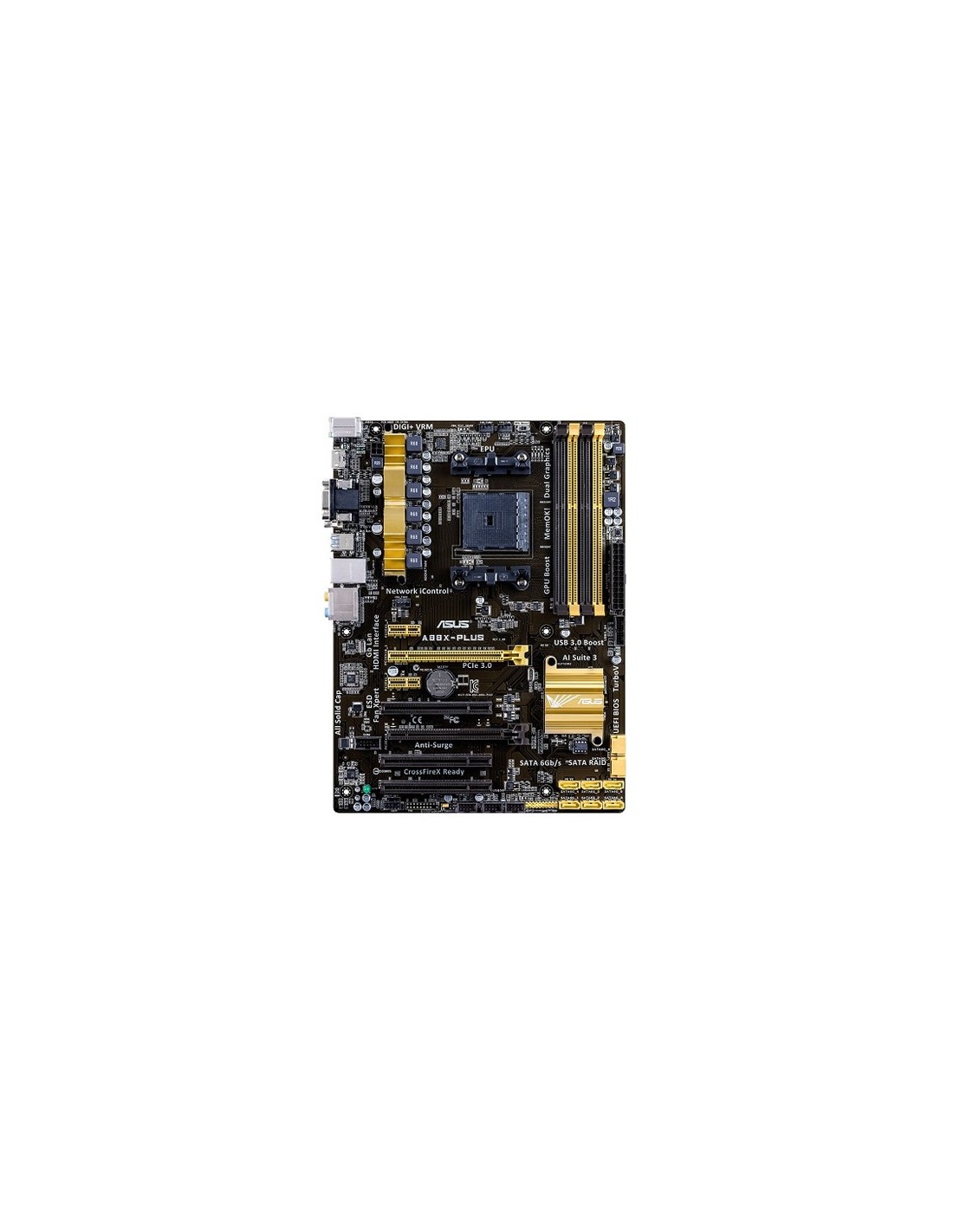

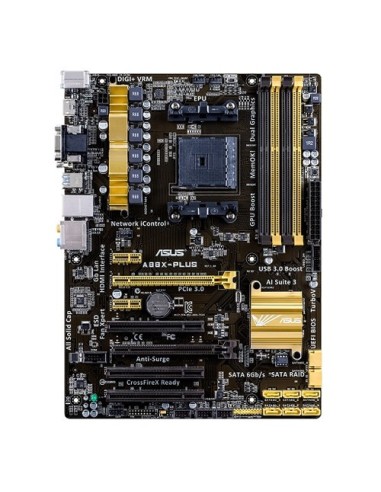

A88X motherboard with FM2+ Socket boosts integrated graphics on all APUs and features intuitive UEFI BIOS
- GPU Boost -Unlock integrated graphics performance for up to 30% boost
- ASUS 5X PROTECTION - All-round protection provides the best quality, reliability, and durability
- New UEFI BIOS – Friendlier, easier, and more intuitive with helpful info added
- USB 3.0 Boost (UASP Support) - 170% faster transfer speeds than traditional USB 3.0
- Network iControl - Real-time network bandwidth
GPU Boost
Unlock integrated graphics performance for up to 30% boost
Exclusive GPU Boost is able to unlock any APU for overclocking integrated graphics. Even non-Black Edition APUs can be boosted – for an integrated graphics performance increase of up to 30%! Gaining this unique power is as simple as flipping an onboard switch or using ASUS AI Suite 3 utility. It easily delivers stable system-wide upgrades for every use.
ASUS 5X Protection
All-round protection provides the best quality, reliability, and durability
ASUS motherboards guard your PC with 5X Protection. We use quality components like DIGI+ VRM digital power design for precise APU power on demand, ESD units tested to strict standards that eliminate electrostatic interference, and resettable fuses around DRAM slots to prevent overcurrent and short-circuit damage. We also use corrosion-resistant back I/O shields, all examples of ASUS providing the best possible reliability and durability.
New UEFI BIOS – friendlier and more intuitive
Exclusive EZ Mode adds useful info to become even easier
Media-renowned UEFI BIOS from ASUS provides the smoothest mouse-controlled graphical BIOS, and now features more intuitive functions to quickly take you to favorite BIOS pages and frequently-accessed settings through custom shortcuts. You can even write quick notes in-BIOS for future reference, view an activity log of setting changes and modifications, and rename SATA ports. EZ Mode has a whole new look, upgraded with extra-friendly capabilities like detailed fan controls, D.O.C.P profile settings, SATA information, and fast clock adjustment. Together, these perfect your BIOS experience.
PCI Express 3.0
PCI Express 3.0 uses improved encoding that provides twice the performance of PCI Express 2.0. Total bandwidth for an x16 link reaches 32GB/s, delivering unprecedented data speeds combined with the convenience and seamless transition offered by complete backward compatibility.
Complete USB 3.0 integration
Double USB access, double the convenience
ASUS facilitates USB 3.0 accessibility for both the front and rear panel. Experience the latest plug n play connectivity at speeds up to 10 times faster than USB 2.0. Our motherboards afford greater convenience with high speed connectivity.
SATA 6.0 Gb/s
Twice the speed
ASUS provides SATA 6.0 Gb/s ports with enhanced scalability, faster data retrieval, and double the bandwidth of SATA 3Gb/s.
MemOK
!
Enhanced memory compatibility: save time on trial and error
Memory issues can be difficult to diagnose and even harder to fix or work around. If RAM problems are preventing your system from booting, MemOK! helps by automatically loading failsafe settings to enable basic functionality with a simple push of a button on the motherboard. This troubleshooting feature saves you time and annoyance, and adds to the confidence of DIY builders.
ASUS Boot Setting
Multiple startup options
Thanks to ASUS Windows 8 hardware optimization, ASUS Boot Setting provides better flexibility in customizing your PC’s startup process. You can shorten system boot-up time to 2-seconds* for a smoother user experience under Windows 8, and even previous versions of Windows. Also, you can enter the BIOS directly with one click through a user-friendly interface, and quickly select your preferred system boot up method: either get to the OS in seconds or opt for regular boot up. Whatever your choice, settings are saved and persistent, with no need to choose every time you power on.
AI Suite 3
One-stop access to innovative ASUS features
ASUS AI Suite 3 offers a brand new user experience through a clearer and more attractive interface with support for larger monitors. It consolidates all exclusive ASUS features into one simple-to-use package, allowing you to supervise overclocking, energy consumption, fan speeds, voltages and more. This all-in-one app offers diverse and easy to use functionality, with no need to switch back and forth between different utilities.
4K Ultra HD ready
Discover future visual experiences
Following up on popular 1080p full HD, 4K Ultra HD is the next big thing, and you’re ready for the upgrade thanks to integrated graphics that natively support up to 4096 x 2160 via HDMI or DisplayPort. That’s four times the pixel count of 1080p (1920 x 1080), offering incredible visual clarity, detail, and realism.
AMD® A-Series Accelerated Processor with AMD Radeon™ R Series Graphics
This motherboard fully supports the latest AMD Socket FM2+ Kaveri APUs with AMD Radeon R series graphics and retains compatibility with AMD Socket FM2 (Richland and Trinity) APUs. AMD Socket FM2+ APUs support Microsoft® DirectX 11.1 for incredibly fast and smooth graphics, native PCI Express 3.0 for full-speed expansion and 4K resolutions via HDMI and DisplayPort connections.
AMD® A88X FCH(Bolton D4)
AMD® A88X FCH (Bolton D4) is designed to support up to 5GT/s interface speed and PCI Express™ 2.0 graphics. It natively supports 8 x SATA 6Gb/s ports and 4 x USB 3.0 Ports.
GreenASUS
Motherboards are EU Energy-related Products (ErP) ready, which requires products meet high efficiency standards with regards to energy consumption. This is in line with the ASUS vision of creating environmentally-friendly and energy-efficient products through design and innovation that reduce the carbon footprint of products and thus mitigate ecological impact.
ASUS A88X-PLUS. Produttore processore: AMD, Presa per processore: Socket FM2+, Processori compatibili: AMD A. Tipi di memoria supportati: DDR3-SDRAM, RAM massima supportata: 64 GB, tipo di slot di memoria: DIMM. Interfacce dell'unità di archiviazione supportate: SATA III. Tecnologia di processo parallela: Quad-GPU CrossFireX, Memoria massima adattatore grafico: 2048 MB, Risoluzione massima: 4096 x 2160 Pixel. Tipo di interfaccia Ethernet: Gigabit Ethernet, Controller LAN: Realtek 8111G
| Processore |
| Produttore processore | AMD |
| Presa per processore | Socket FM2+ |
| Processori compatibili | AMD A |
| Memoria |
| Tipi di memoria supportati | DDR3-SDRAM |
| tipo di slot di memoria | DIMM |
| Canali di memoria | Dual-channel |
| Non-ECC | Sì |
| Velocità di memoria supportate | 1333,1600,2133,2200,2250,2400 MHz |
| RAM massima supportata | 64 GB |
| Senza buffer | Sì |
| Controller di archiviazione |
| Interfacce dell'unità di archiviazione supportate | SATA III |
| Livelli RAID | 1,5,10 |
| Grafica |
| Memoria massima adattatore grafico | 2048 MB |
| Tecnologia di processo parallela | Quad-GPU CrossFireX |
| Risoluzione massima | 4096 x 2160 Pixel |
| I/O interni |
| Connettori USB 2.0 | 3 |
| Connettori USB 3.2 Gen 1 (3.1 Gen 1) | 1 |
| Numero di connettori SATA III | 8 |
| Numero di connettori SATA | 8 |
| Connettore pannello audio frontale | Sì |
| Connettore ATX (24-PIN) | Sì |
| Numero di connettori ventola chassis | 2 |
| Numero di connettori COM | 1 |

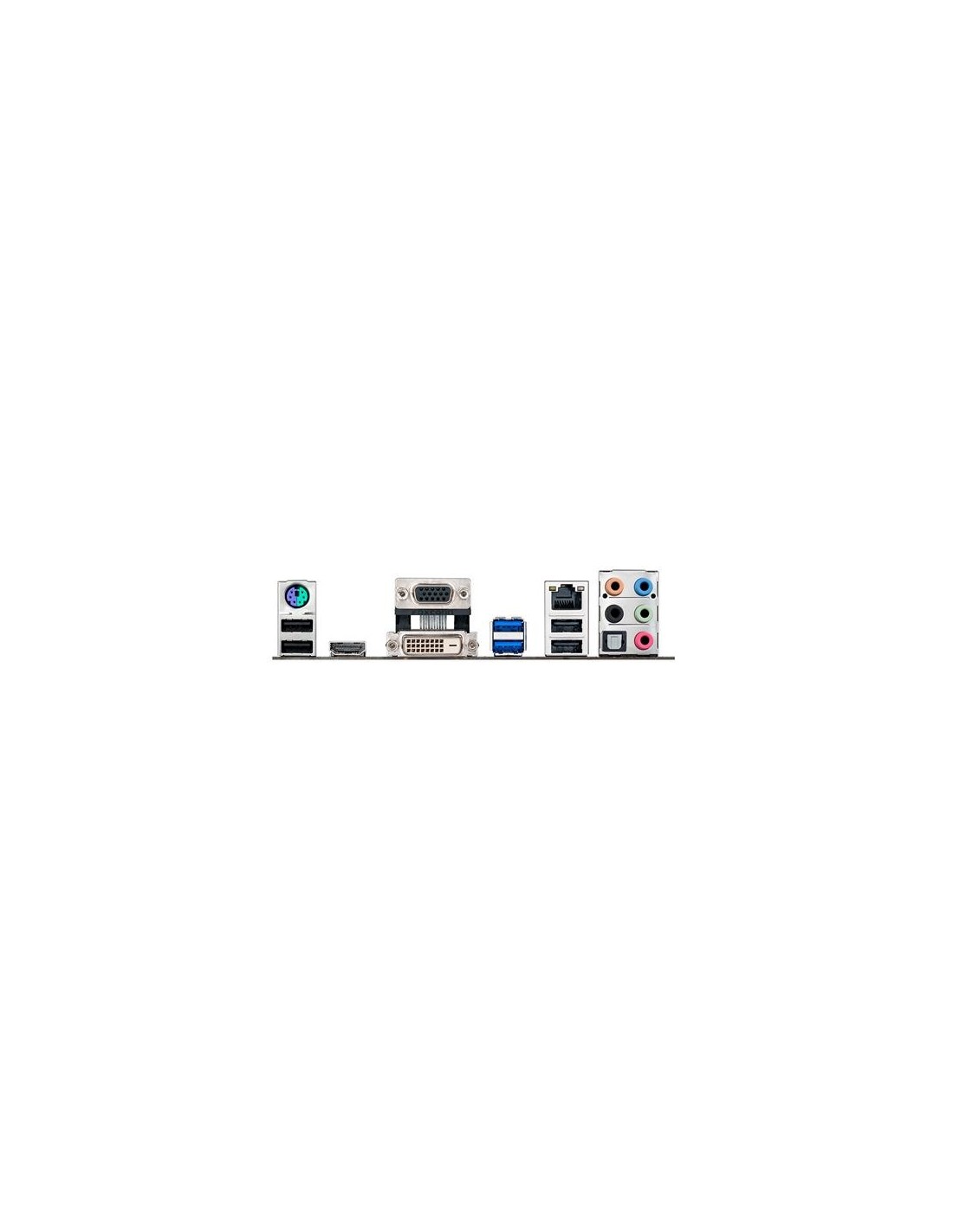

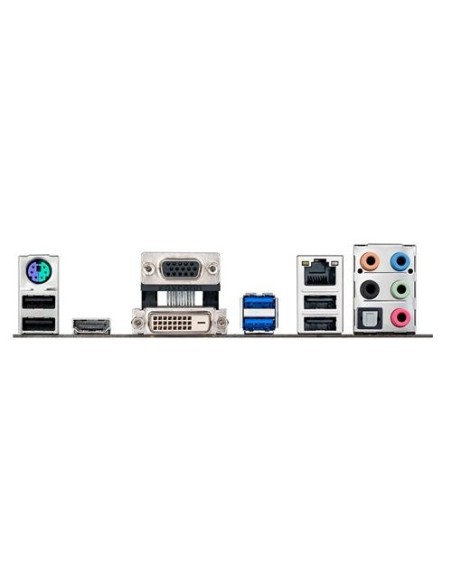

| Pannello posteriore porte I/O |
| Quantità porte USB 2.0 | 4 |
| Quantità di porte USB 3.2 Gen 1 (3.1 Gen 1) di tipo A | 2 |
| Quantità porte Ethernet LAN (RJ-45) | 1 |
| Quantità porte PS/2 | 1 |
| Quantità porte VGA (D-Sub) | 1 |
| Quantità porte HDMI | 1 |
| Quantità porte DVI-D | 1 |
| Uscite per cuffie | 1 |
| Microfono, spinotto d'ingresso | Sì |
| Porta uscita S/PDIF | Sì |
| Quantità porte COM | 1 |
| Collegamento in rete |
| Collegamento ethernet LAN | Sì |
| Tipo di interfaccia Ethernet | Gigabit Ethernet |
| Controller LAN | Realtek 8111G |
| Caratteristiche |
| Componente per | PC |
| Fattore di forma scheda madre | ATX |
| Famiglia di chipset per scheda madre | AMD |
| Chipset scheda madre | AMD A88X |
| Chip audio | Realtek ALC887 |
| Sistema audio | 7.1 canali |
| Tipologia alimentazione | ATX |
| Sistema operativo Windows supportato | Windows 7 Home Basic,Windows 7 Home Basic x64,Windows 7 Home Premium,Windows 7 Home Premium x64,Windows 7 Professional,Windows 7 Professional x64,Windows 7 Starter,Windows 7 Starter x64,Windows 7 Ultimate,Windows 7 Ultimate x64,Windows 8,Windows 8 Enterprise,Windows 8 Enterprise x64,Windows 8 Pro,Windows 8 Pro x64,Windows 8 x64,Windows 8.1,Windows 8.1 Enterprise,Windows 8.1 Enterprise x64,Windows 8.1 Pro,Windows 8.1 Pro x64,Windows 8.1 x64,Windows XP Home,Windows XP Home x64,Windows XP Professional,Windows XP Professional x64 |
| Slot espansione |
| x1 slot PCI Express | 2 |
| Slot PCI Express x16 (Gen 2.x) | 1 |
| Slot PCI Express x16 (Gen 3.x) | 1 |
| Slot PCI | 3 |
| BIOS |
| Tipo BIOS | UEFI AMI |
| Dimensione memoria BIOS | 64 Mbit |
| Versione ACPI | 2.0a |
| Jumper di azzeramento CMOS | Sì |
| Tasto di azzeramento CMOS | Sì |
| Dimensioni e peso |
| Larghezza | 305 mm |
| Profondità | 226 mm |
| Contenuto dell'imballo |
| Cavi inclusi | SATA |
| Drivers inclusi | Sì |
