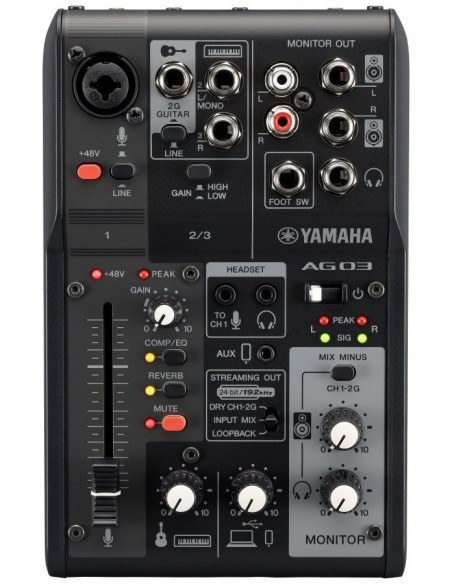

Yamaha AG03MK2 3 canali Bianco

Il tuo pubblico aspetta.
Con la sua varietà di ingressi e uscite, gli effetti DSP e la funzione LOOPBACK, AG03 si è affermato rapidamente come un caposaldo tra i live streamer che cercano di configurare un sistema semplice ma completo senza scendere a compromessi sulla qualità del suono. L'AG03MK2 di ultima generazione aggiunge una connettività più flessibile includendo mini I/O a 4 poli, ampliando così la gamma di stili di streaming, nonché un nuovo pulsante Mute, fondamentale per varie applicazioni di live streaming. Accanto ai miglioramenti costruttivi, di design, del circuito interno e del suono in generale, il MK2 consoliderà ulteriormente la serie AG come standard di settore con cui confrontare tutto il resto.

Fast, intuitive sonic control
The AG03MK2 is equipped with a variety of physical controls including a large 60mm fader that helps you shape and manage the audio intuitively and quickly. The newly added mute button allows you to cut your mic input at a moment's notice if your situation demands it. Reverb and Mute can even be controlled by the optional FC5 foot switch, freeing up your hands for other tasks.

Flexible connectivity and LOOPBACK function expand your streaming capabilities
In addition to a microphone input for the condenser microphone of your choice, the AG03MK2 also features a 1/4 inch jack input for connecting a guitar or line instrument, and an upgraded 4-pole mini jack (TRRS) for smartphone input and output capabilities.

You can also use LOOPBACK function to play back the audio signal from a connected USB device to USB streaming output as with previous AG series mixers.

Improved internal circuitry for more professional sounding audio

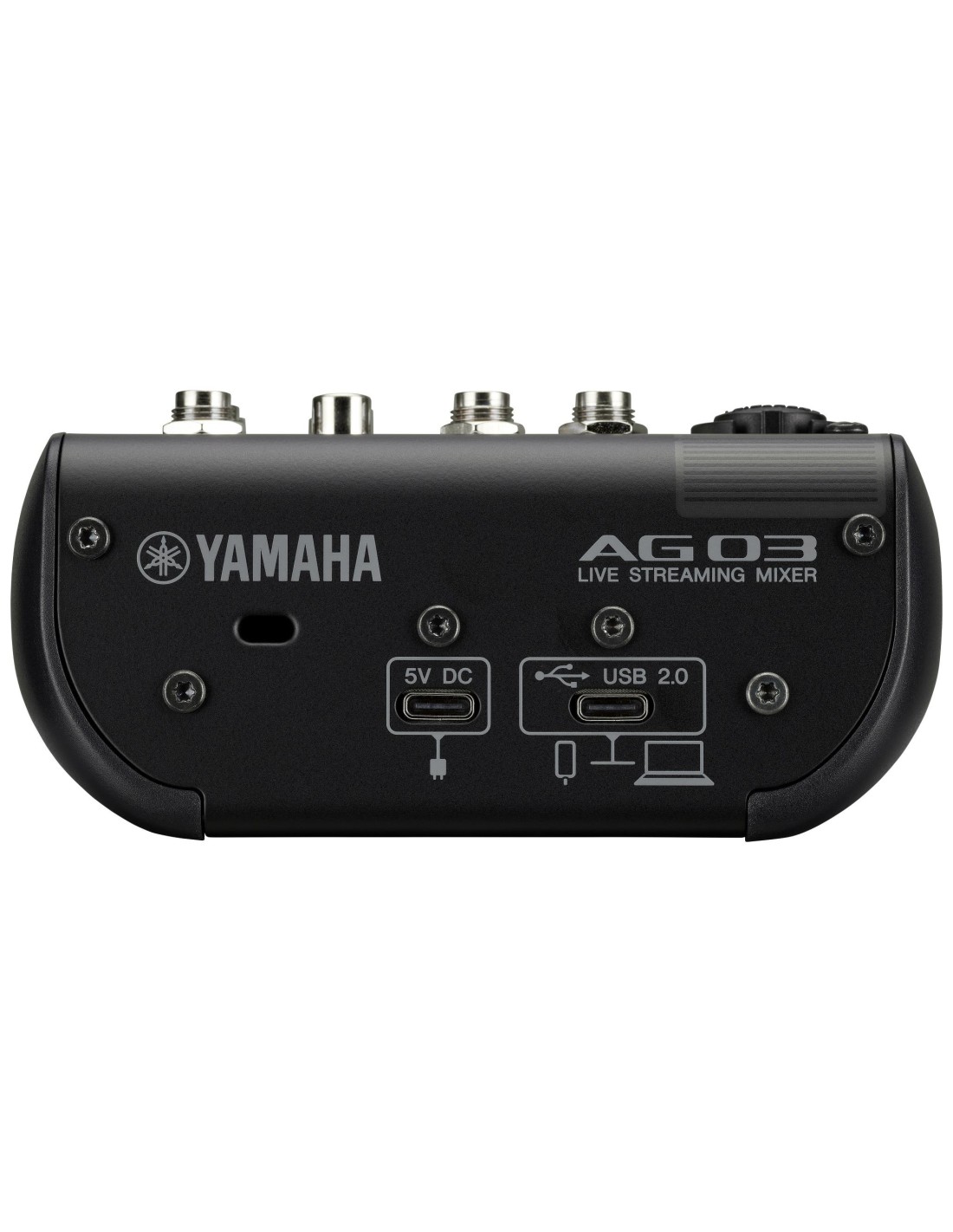

The AG03MK2 sees a marked improvement in sound quality as a result of adopting USB-C connectivity and enhanced internal circuitry that will take your streaming audio to a more professional level. The high transfer rate and power supply of USB-C provide more stable operation.

Zero-latency DSP effects to shape your sound like a pro
Regardless of your particular streaming application, you’ll likely want to add some depth and dimension to the audio you’re broadcasting to add professionalism to your streaming content. The AG03MK2 is equipped with optimized 1-TOUCH COMP/EQ and REVERB controls to dial in the sound that best suits your style, and an amp simulator to add authenticity and punch to your guitar input.

All these tools are processed by the internal DSP chip so there is no delay, making it particularly valuable for live streaming when real-time accuracy is crucial.

You also have the option to turn these effects off completely to capture pure, raw recordings through your favorite microphone for music/audio production that will be edited by an engineer later.

"AG Controller" provides precise control
AG Controller software allows users to easily and precisely check and configure the DSP audio processing inside the AG. Offering two modes of operation, "Simple" and "Detail", AG Controller gives users of varying music production experience detailed management of their audio from any Windows/Mac or iOS device connected to the AG03MK2 via USB.

Adapt to your surroundings

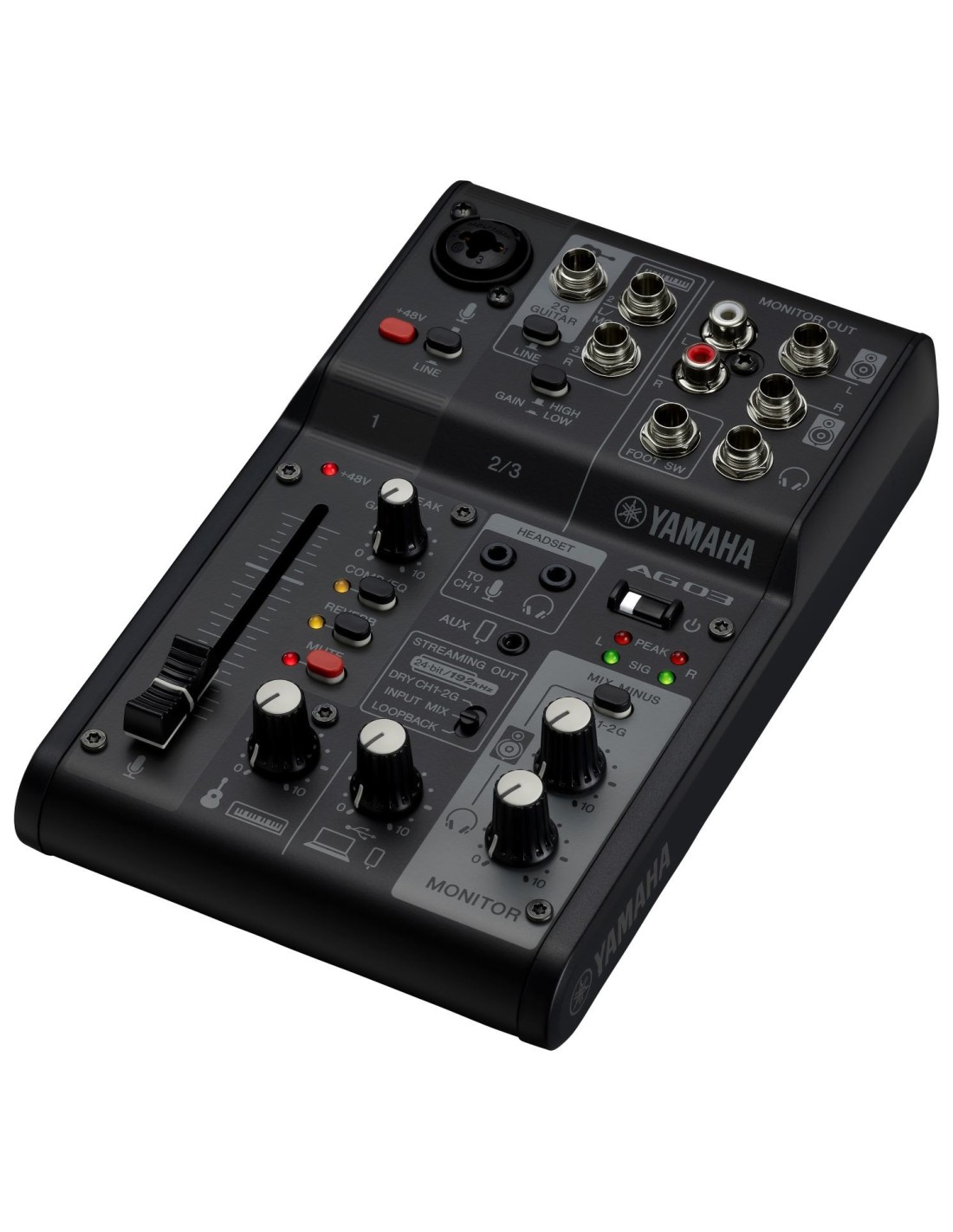

The sleek, slim, and compact body of the AG03MK2 can be placed on virtually any flat surface.

By combining it with to a mobile battery, a minimalistic, mobile streaming station can be configured anywhere.

*For stable operation of the AG03MK2, a power supply of DC 5V 900mA or more is required.

Powerful bundled software
The AG03MK2 comes bundled with Cubase AI music production software, as well as WaveLab Cast for audio production and editing. The AG03MK2 is also compatible with Rec'n'Share and Cubasis LE applications for iOS devices which are available free of charge from Yamaha and Steinberg to support and inspire your audio content creation.

Certified for OBS
OBS Studio: Free and open source software for video recording and live streaming.

Yamaha is an official sponsor of OBS. By sponsoring OBS, which aids the live streaming activities of creators around the world, Yamaha advocates for the activities of content creators who devote themselves to developing a wide range of content, including live music performances, as well as podcasts and game streaming.

Yamaha AG03MK2. Quantità di canali: 3 canali, processo del suono digitale: 24 bit, Frequenze di campionamento supportate: 192 kHz. Consumi: 4,5 W, Consumo di energia: 900 mA. Quantità per pacco: 1 pz. Larghezza: 126 mm, Profondità: 201 mm, Altezza: 63 mm

Audio
Quantità di canali	3 canali
Frequenze di campionamento supportate	192 kHz
processo del suono digitale	24 bit
Display
Display incorporato	No
Equalizzatore
Equalizzatore	Sì
Dettagli tecnici
Connettore USB	USB tipo-C
Gestione energetica
Consumi	4,5 W
Consumo di energia	900 mA
Dimensioni e peso
Larghezza	126 mm
Profondità	201 mm
Altezza	63 mm
Peso	800 g
Contenuto dell'imballo
Guida rapida	Sì
